Intermediate Woodturning Project
Table Lamp - page 5

connecting base to shaft and getting ready to wire.

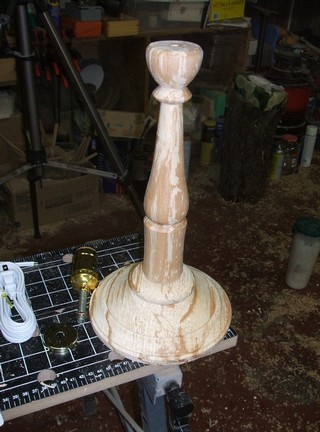

be sure the tenon is  a good fit

Check to be sure the tenon is a good fit. Take your time here. It will make a difference to the like of the lamp and a firm fit makes the assembly and gluing easier.

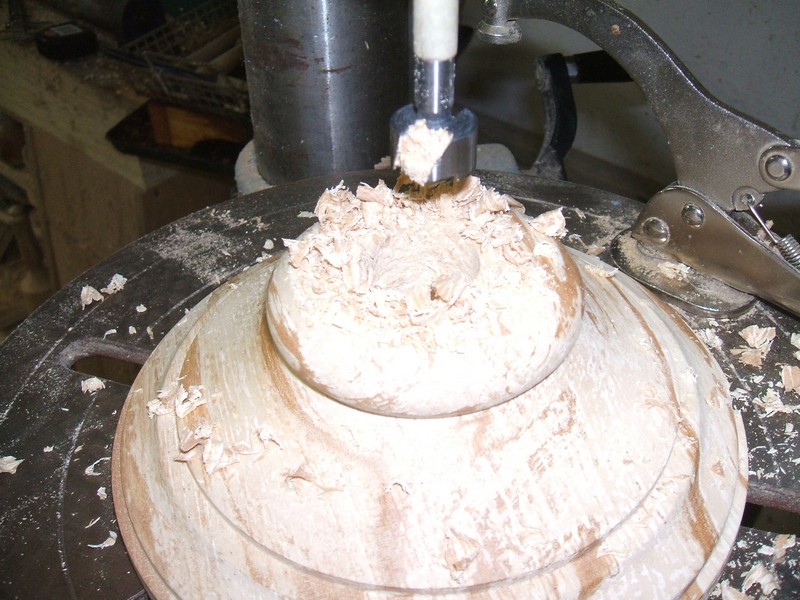

1/2" hole in the center of the base

Drill a 1/2" hole in the center of the base to intersect with the wire hole from the side.

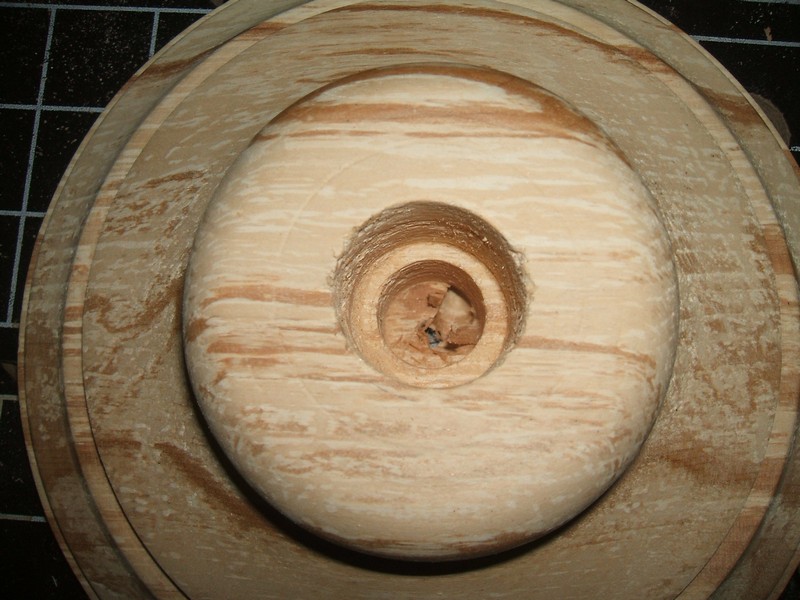

center connects to the side

I stopped the hole before it came out the bottom but there is no particular reason to do so and it may be easier to wire the lamp if the hole is completely through.

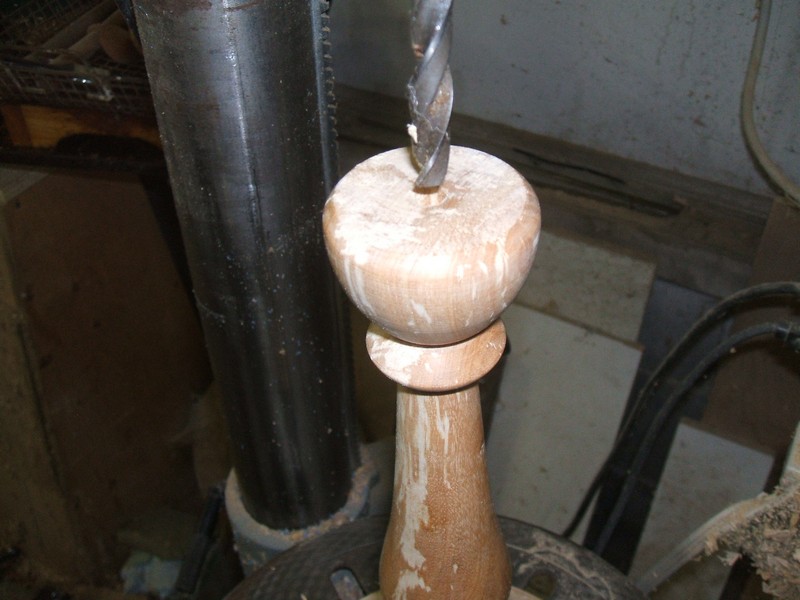

widen the hole through the shaft to 3/8"

I like to widen the hole through the shaft to 3/8" for easier wiring and assembly.

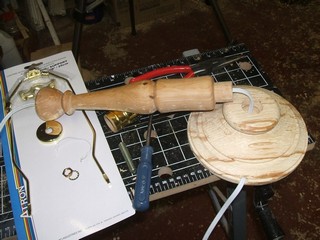

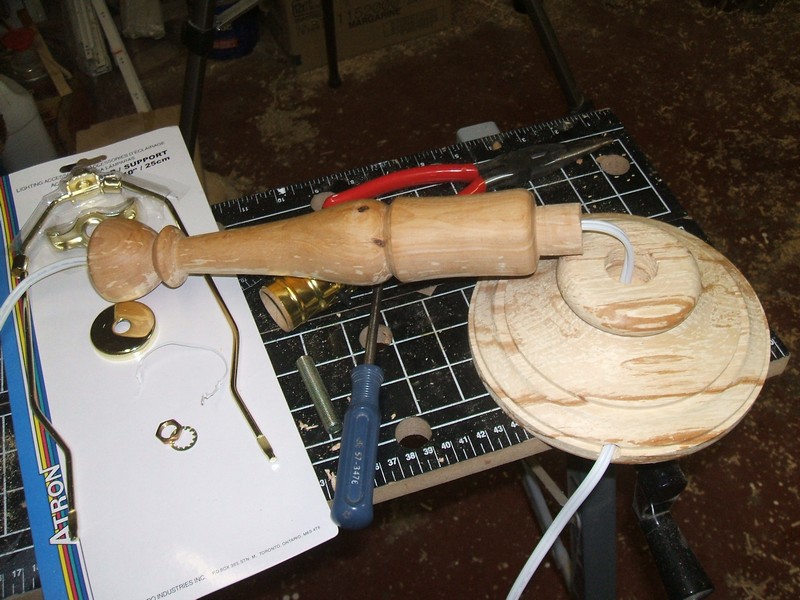

wire through the base and shaft

Run the wire through the base and shaft.

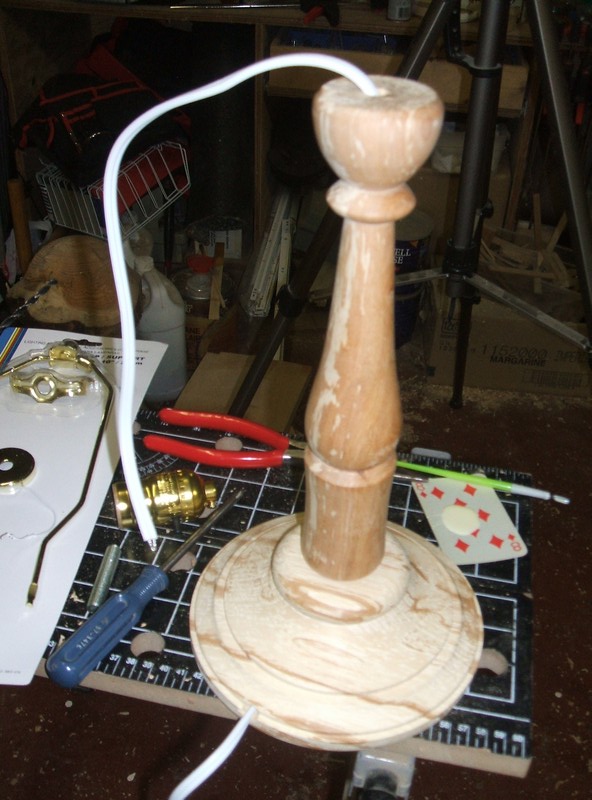

Glue the tenon in the mortice

Glue the tenon in the mortice with yellow glue or adhesive of your choice.
