Woodturning an Incurved Winged Bowl - Page 9

Getting the piece remounted on the wood lathe so as to be able to turn the bottom.

the proportion of sides to width of bottom and the relationship of mass and curve to height of bas

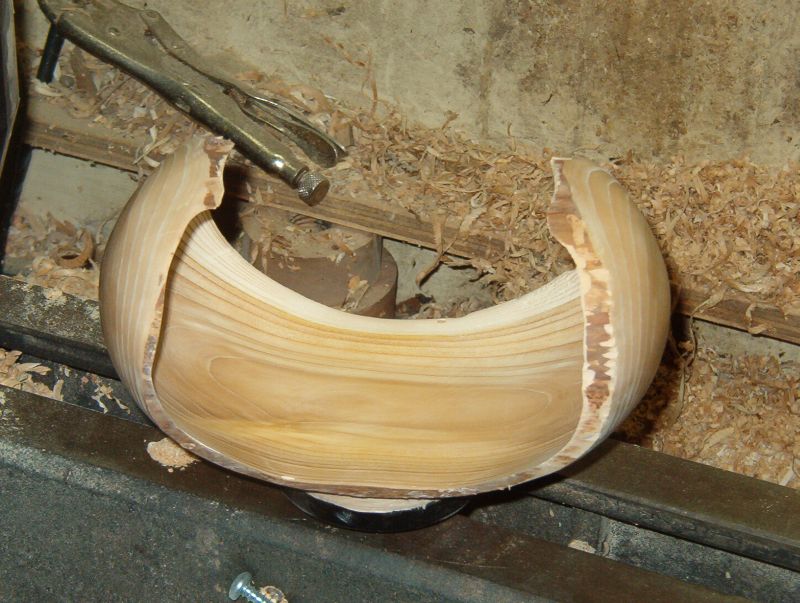

This is the first time we have a chance to see the piece as it will eventually be displayed. Even with the face plate still on we see the proportion of sides to width of bottom and the relationship of mass and curve to height of base.

 mark the base center

I decide for the nonce that I like a pedestal base, not my usual style but I think it fits this piece. That decided it is time to do something about the base. Before the faceplate comes off I mark the base center. Note the little tool to the right of the picture. The tool has a tenon turned the diameter of the inside of the faceplate threads. A brad is dead center on the tool and cut off to a point.

woodturning big wing image

Place the tool in the faceplate and with a little turn

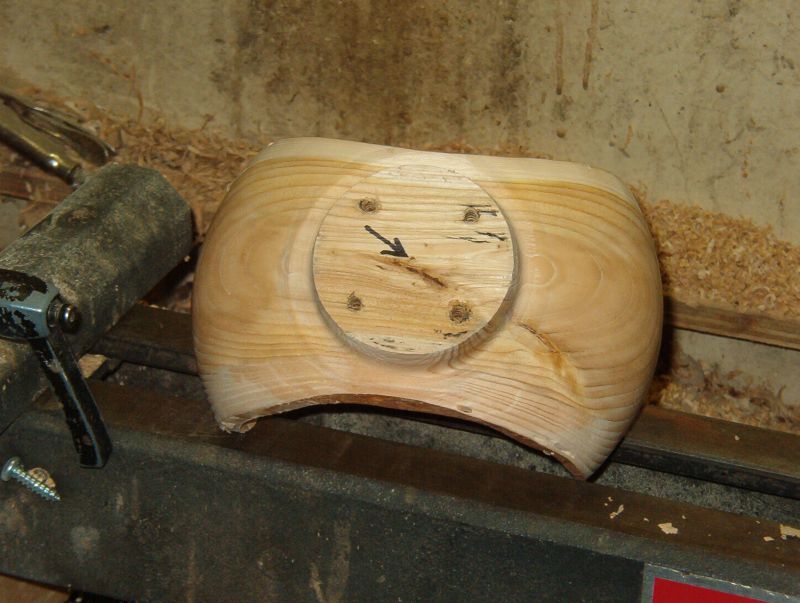

 bottom center is marked

The bottom center is marked.

fasten a scrap wood block to the lathe

I fasten a scrap wood block to the lathe

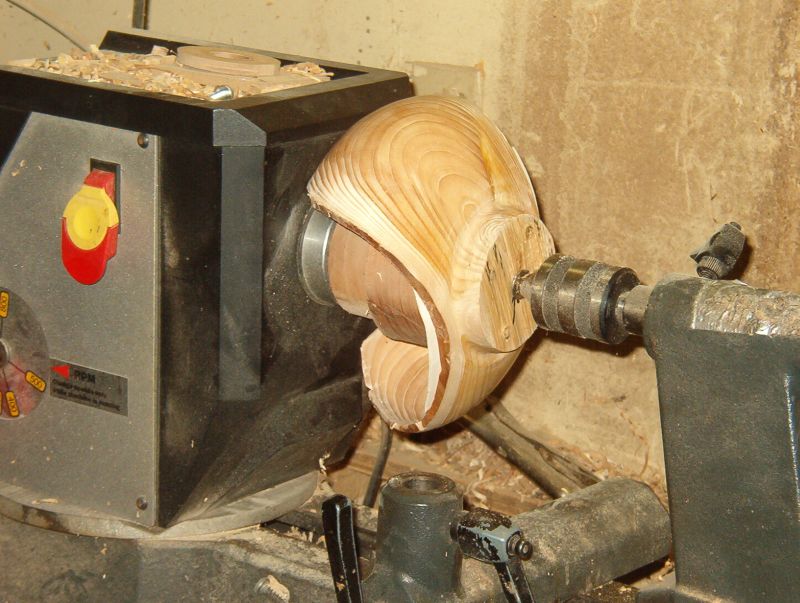

bring up the tail stock to marked dead center

and bring up the tail stock to marked dead center while putting a piece of foam between the piece and the block.

adjust the piece for center

Then I carefuly adjust the piece for center, tighten the tail stock, and bring up a 3/16" Oland to finish the bottom
